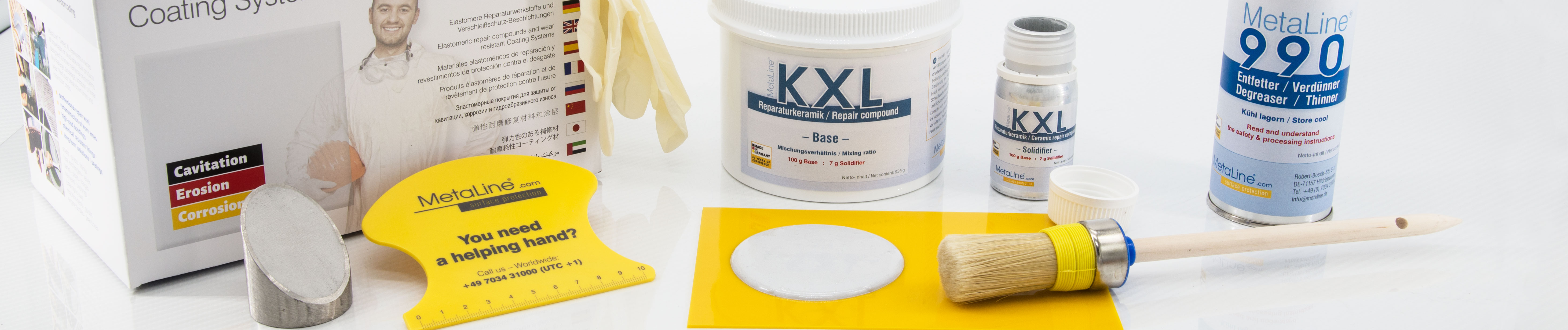

MetaLine KXL ceramic repair system
Image not available
Image not available
  2. Products
  3. Series XL - Ceramic Compounds
  4. MetaLine KXL (brushable)

MetaLine KXL (brushable)

Features

MetaLine's ceramic repair compound KXL is a self-processing, ferrite-free, 2-component ceramic material for the protective coating of abused metallic components, heavy-duty jointing or chemical-resistant linings.

Material properties: Liquid / Brushable / Ceramic

  • Brushable, castable, injectable - self-leveling at room temperature
  • Solvent-free & non-toxic
  • Cold curing without heat transfer into the substrate
  • No special tools or expertise required
  • Adheres to steel, stainless steel, soft-/non-ferrous metals, alloys (casted / forged / rolled)
  • Replaces lost metallic structures but without equivalent static stability
  • Completely corrosion resistant
  • Exceptional linear wear resistance
  • No shrinkage or expansion
  • Non-magnetic
  • Good thermal and electrical insulation properties
  • Heat resistant under dry conditions up to 200 °C (400 °F)
  • Extreme chemical resistance
  • Superior cathodic disbonding resistance
  • Machinable
  • Overpaintable or even chrome-platable
  • Potable water approval due to British Standard BS 6920
Application Areas tear and rupture damage leakages insufficient dimensioning wear porosities misdrilled holes pitting corrosion corrosion casting porosities crevice corrosion notching gap bridging electrical and thermal insulation glued joints

Application Areas

cracks and breakage
leakage
undersize / missing tolerance
linear abrasion
misdrilled holes
pitting corrosion
electro-chemical corrosion
casting porosities
crevice corrosion
notching
gap bridging
electrical / thermal insulation
adhesive for metal bonding

<!-- START: ConditionalContent --> Pump housing, centrifugal pump, reconstruct, refurbish, repair damage, refill, wear, <!-- END: ConditionalContent --> <!-- START: ConditionalContent --><!-- END: ConditionalContent --> <!-- START: ConditionalContent --><!-- END: ConditionalContent --> <!-- START: ConditionalContent --><!-- END: ConditionalContent -->
metaline_k0427
next arrow

previous arrow
Exit full screenEnter Full screen
metaline_k0427
metaline_k0669F
metaline_k0575
metaline_k0420
metaline_k0405
metaline_k0555
metaline_k0585
metaline_k0673
metaline_k0597B
metaline_k0647
metaline_k0617
metaline_k0668
metaline_k0187
metaline_k0713D
metaline_k0756
metaline_k0820
metaline_k0725
metaline_k0740
metaline_k0696
previous arrow
next arrow

Please publish modules in offcanvas position.

During partial repair with MetaLine Ceramic Repair Compound KXL – we also do not particularly like to use a brush as a coating tool. Have a look at the MetaLine Series 700 cartridge spraying process which presents a good alternative
MetaLine's cavitation protective coat has been applied by the customer himself – technically welldone, optically not the first choice
Plugging of pipe ends and synthetic recontouring of heat exchanger bottom plates
Electrically insulating ceramic protective coating
Chemical-resistant and wear-resistant coating
All-round coated throttle valve
Complete internal sealing with MetaLine Ceramic Repair Compound KXL applied by brush

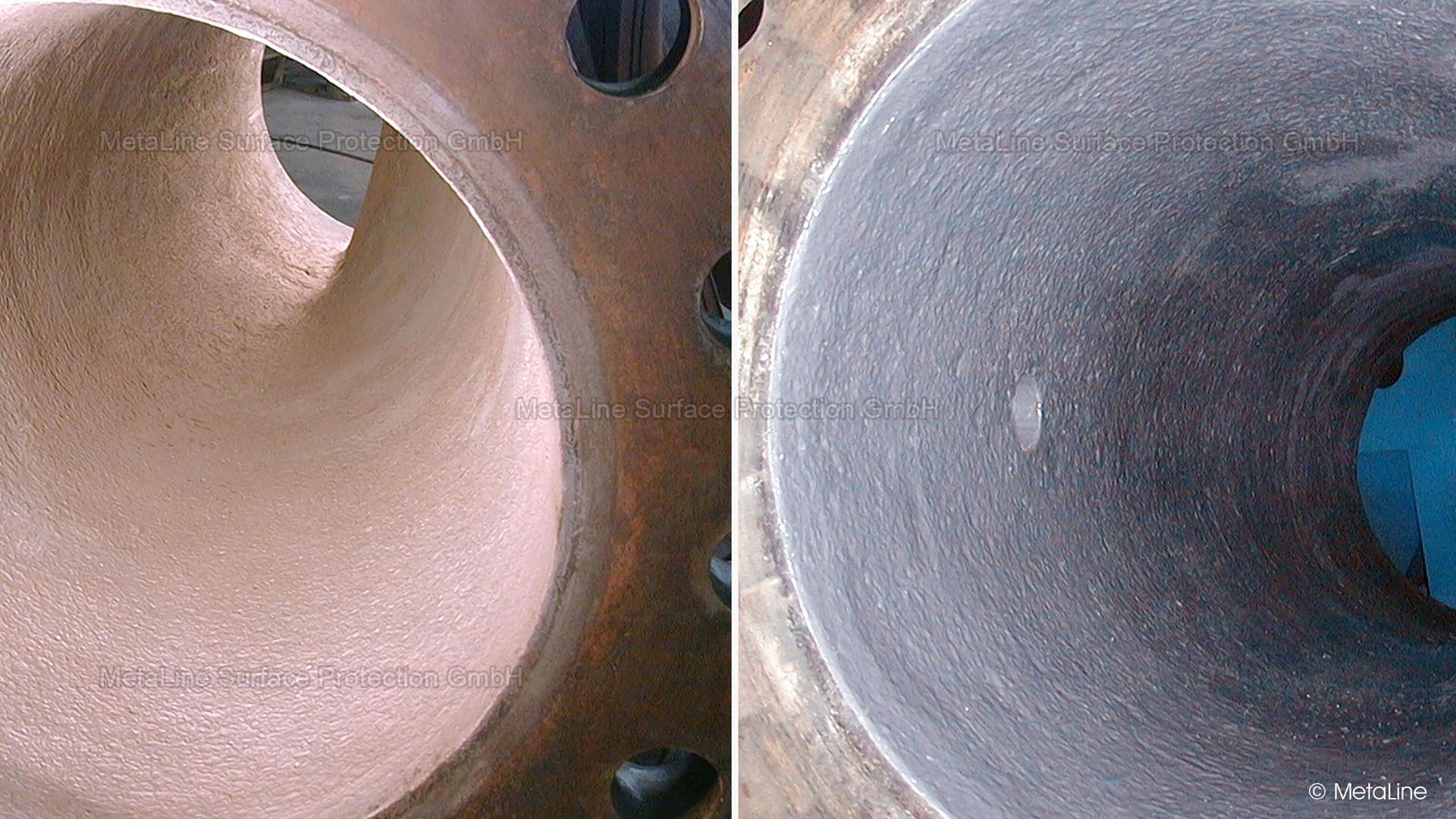

After the professional surface preparation three coats of MetaLine KXL had been brushed on in a total thickness of about 1 mm
Overhauled and coated ready for use – the result is quite convincing
Made alive, internally and externally – with MetaLine surface technologies
The upper part after reworking – an elastomeric protective coating consisting of 3 mm MetaLine 785 provide the casing with a brand new life
Shaft coated with MetaLine Ceramic Repair Compound KXL

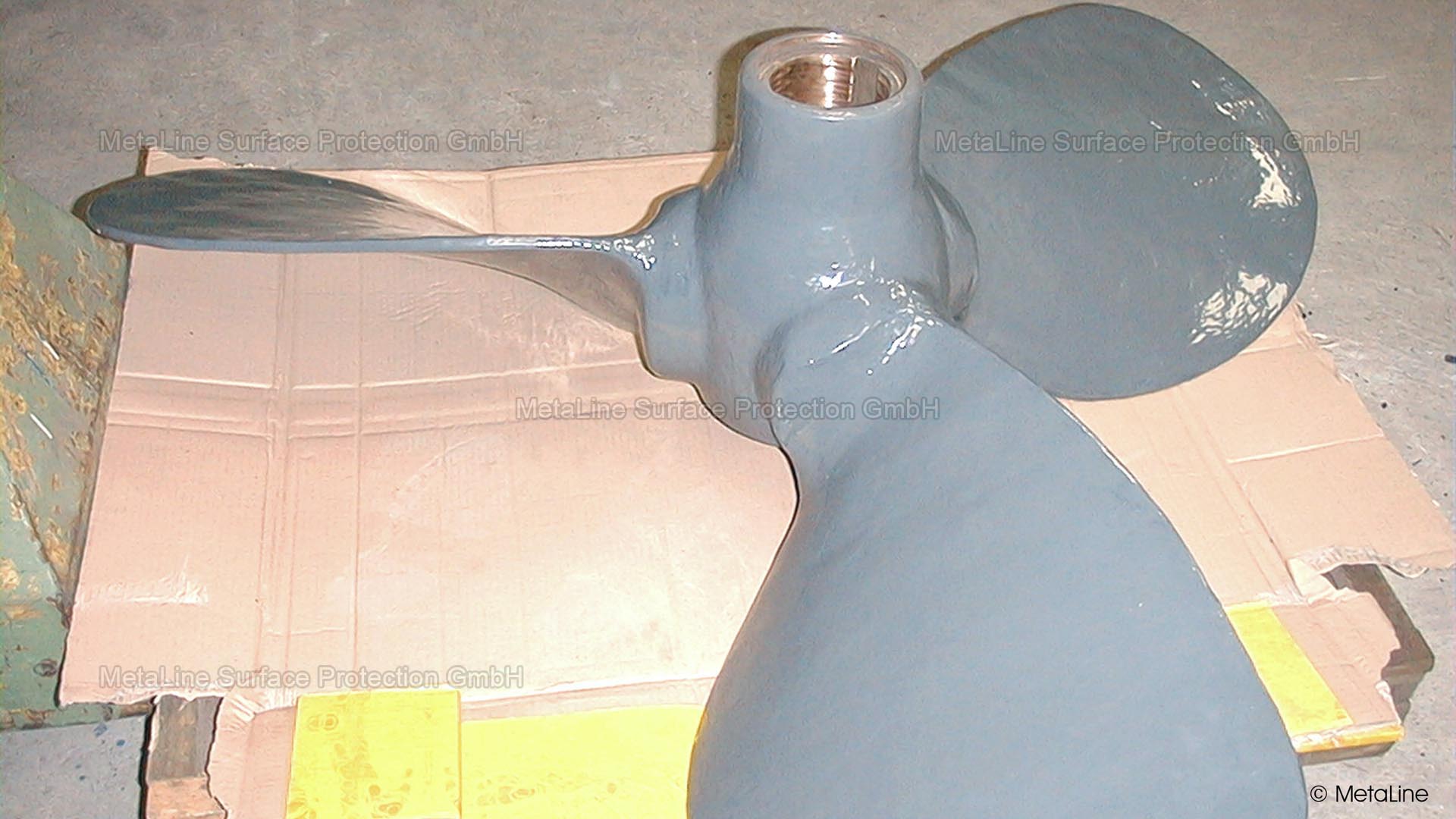

After the reprofiling, the complete part had been overcoated with three layers of MetaLine KXL
Additional MetaLine Ceramic Repair Compound KXL was applied over the entire repair area by brush
All-round highly chemical-resistant coating with liquid MetaLine Ceramic Repair Compound KXL

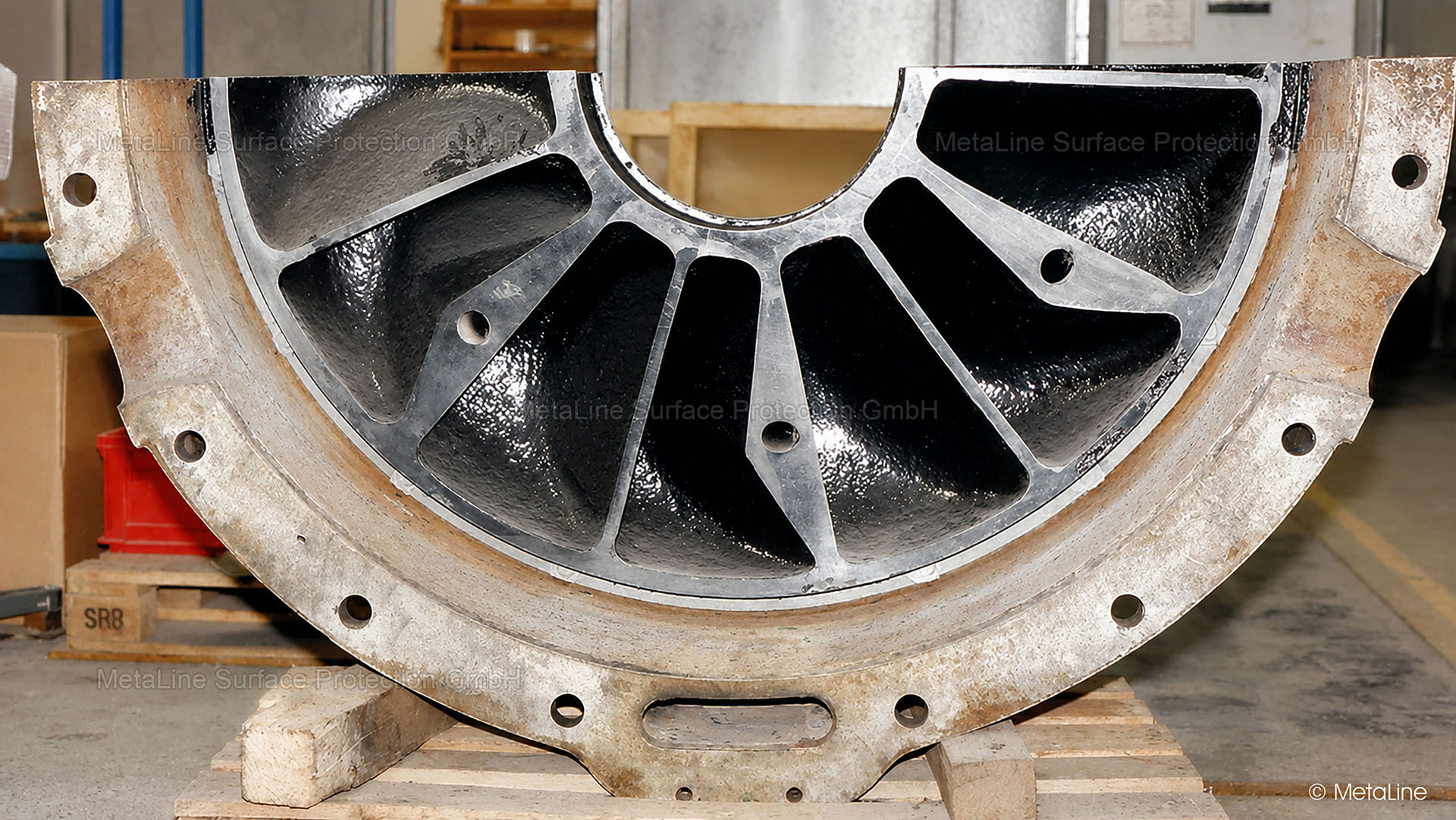

In a combination of MetaLine SXL and KXL – in one working step - the complete surface had been restructured and overcoated. The accuracy achieved was tremendous
Ceramic Protective Coating MetaLine KXL – the unevenness is due to the casting surface profile, not the coating
Francis impeller repaired with MetaLine Ceramic Repair Compound XL – a spray coating was not possible due to the small blade openings
